Quanzhou Bayeux Industrial Co., Ltd. is one of the leading manufacturers and suppliers of eva modern shoe molding in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please rest assured to buy customized eva modern shoe molding from our factory.

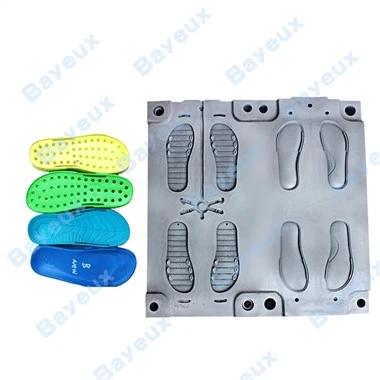

The EVA Modern Shoe Molding is specially designed for EVA injection molding machines to manufacture a wide range of EVA footwear products, including garden shoes, clogs, Crocs-style shoes, sandals, closed shoes, leather shoes, casual footwear, and various EVA soles.
Made from high-quality aluminum alloy, the mold provides excellent durability, precise dimensions, and stable performance during continuous production. It is compatible with different EVA injection molding machines and can be customized according to customers' footwear designs, sizes, logos, and production requirements.
The standard mold plate size is 290×550mm, allowing flexible cavity arrangements. For smaller sizes such as women's and children's shoes, one mold can usually produce two pairs at a time, while larger men's shoe designs generally require one pair per mold cavity. Different cavity designs can be customized based on product structure and production efficiency requirements.
Customized EVA Shoe Mold Manufacturing Process
Before manufacturing the EVA shoe mold, we provide a wooden model sample according to the customer's shoe design. Customers can check and confirm the shoe shape, trademark position, pattern details, and appearance before final mold production.
After approval, the aluminum mold production process begins, including:
- CNC precision machining
- Aluminum casting
- Teflon coating treatment
- Electroplating process
Special surface treatments for customized designs
These advanced manufacturing processes ensure accurate molding, smooth shoe surfaces, and long mold service life.
Specification
|
Mainly products |
|||
|
EVA foaming sole mould |
1 mould 8/12 pairs |
EVA foaming slipper mould |
1 mould 8 pairs |
|
EVA modern shoe molding |
1 mould 1/2 pairs |
EVA mold on leather shoes |
1 mould 1/2 pairs |
|
EVA rain boots mould |
1 mould 1/2 pairs |
EVA shoe molding |
1 mould 1/2 pairs |
|
EVA jogger outsole mold |
1 mould 1/2 pairs |
EVA footwear sole mould |
1 mould 1/2 pairs |
|
EVA slipper mould |
1 mould 1/2 pairs |
EVA slipper sole mold |
1 mould 1/2 pairs |
|
EVA shoe sole mold |
1 mould 1/2 pairs |
Plastic molded EVA sole |
1 mould 1/2 pairs |
|
PVC plastic shoe molding |
1 mould 1 piece |
PVC shoe molding |
1 mould 1 piece |
|
PVC footwear shoe sole mould |
1 mould 1 piece |
Wood shoe molding for EVA and PVC shoes |
1 mould 1 piece |
|
PVC out sole mould |
1 mould 1 piece |
PVC shoe making mould |
1 mould 1 piece |
|
Rubber sole muld |
1 mould 1 piece |
DIP shoe making molds |
1 mould 1 piece |
|
DIP shoe molding |
1 mould 1 piece |
PU sole mould for DIP shoes |
1 mould 1 piece |
|
Rubber mould |
1 mould 1 pair |
PU copper mould |
1 mould 1 piece |
|
PVC shoe mold |
1 mould 1 piece |
PVC shoe mould |
1 mould 1 piece |
|
PVC footwear sole mould |
1 mould 1 piece |
PVC leather shoe mould |
1 mould 1 piece |
|
PVC clogs shoe mould |
1 mould 1 piece |
PVC closed shoe mould |
1 mould 1 piece |
|
PVC rain boots mould |
1 mould 1 piece |
PVC solemold |
1 mould 1 piece |
|
EVA crocs shoe molding |
1 mould 1/2 pairs |
EVA clogs mould |
1 mould 1/2 pairs |
Essential details
|
Market 1: |
Russia, Belarus, Ukraine, Poland, Uzbekistan, Turkey. |
Matching machine 1: |
NEW KCLKA |
|
Market 2: |
Pakistan, Bangladesh, India, Indonesia, Lebanon, Thailand, Vietnam, Afghan. |
Matching machine 2: |
Strong, Lida, Kingsteel, KingMin
|
|
Market 3: |
Morocco, Ethiopia, Sudan, Kenya, Algeria, Egypt, Yemen |
Matching machine 3: |
Maingroup Wintech, JIC |
|
Market 4: |
Cote d'lvoire, Tanzanian Nigeria, Cameroon, South Africa, Philippines |
Matching machine 4: |
Kingrich, Tienkang
|
|
Market 5: |
Philippines, Korea |
Raw material |
EVA raw material |
|
Market 6: |
Argentina, Mexico, Columbia, Peru, Ecuador, Brazil, Bolivia |
Certification: |
CE ISO |
Quality Control & Delivery
Each EVA mold undergoes strict quality inspection after completion, including:
- Mold size accuracy checking
- Appearance inspection
- Cavity matching verification
- Trial production testing
After passing inspection, the molds are carefully packed and prepared for shipment. We provide flexible transportation options including sea freight and air freight according to customer requirements.
The standard production time is around 25–45 days, depending on mold design complexity and order quantity.
What process is used for EVA Shoe Molding?
Compression molding, as the name suggests, is the process of compressing a block of EVA (Ethylene Vinyl Acetate) foam inside a metal mold. Much like a cupcake mold, the sides of these molds have a design etched into them.
When heat and pressure are applied to the mold, the material expands and fills the inside of the mold. Under pressure, the EVA foam takes on the shape of the mold cavity, including the design etched on its sides.
Open up the compression mold after the cycle is complete, and you'll be rewarded with a freshly made running shoe midsole. The sinews and design which you see on the midsole sidewalls are inherited from the mold design.
The midsole is removed, then the mold is cleaned and prepped for the next batch of production. The prepping process involves using 'release agents,' which is basically a chemical to stop the EVA from sticking to the metal surface.
Why choose us
Professional Services
We offer comprehensive support, including technical assistance, training services, material and mold consultation, video tutorials, and after-sales service. Our team also provides overseas machinery engineering services.
Wide Product Range
Our diverse product line includes baby diaper machines, sanitary napkin machines, adult diaper machines, shoe machines, shoe molds, and shoe-box manufacturing equipment.
Rich Experience
With over 15 years of experience in the machine and mold industry, our company is well-versed in delivering high-quality solutions.
Broad Market Reach
Our clientele spans the globe, with successful collaborations in Southeast Asia, South America, the Middle East, and beyond.
